Nanjing Tianhui Biotechnology Equipment Co., Ltd.

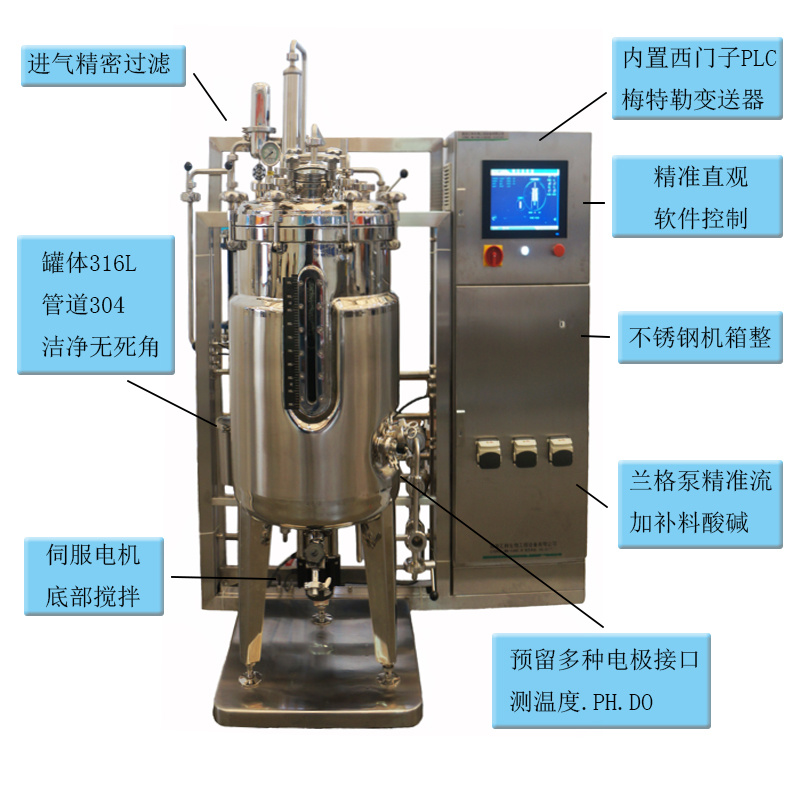

model： MSF-S-50 volume：10/15/20/30/50/100/200/500L material：316L stainless steel/304 stainless steel Mixing mode：Top mechanical mixing Sterilization method：In situ sterilization with exogenous steam Basic configuration：Temperature, rotational speed, pH, dissolved oxygen, defoaming, feeding and tank pressure

Belonging Category:

Stainless steel fermentor

Inquiry

Product Description

Application area
This product is widely used in microbiology laboratories of universities, scientific research institutes and enterprises. It is an ideal tool for precision fermentation test. It can be applied to the screening of medium formula, optimization of fermentation process parameters and validation of production process and strain.

Technical parameter

Model	MPF-S-50	MSF-S-50
volume	10/15/20/30/50/100L	10/15/20/30/50/100L
Driving mode	Direct connection between motor and magnetic coupling system	The motor (DC or AC) is directly connected with the agitator
Tank material	316L stainless steel/304 stainless steel
speed control	50-1000 rpm, control accuracy±5 rpm
temperature control	T~50℃，control accuracy：±0.5℃（T is the external water temperature + 5 ℃）
pH control	2-12pH, ontrol accuracy±0.02
DO control	5-100%,ontrol accuracy±1%
Automatic defoaming	Sensitivity:100-100000 Ω
Sterilization method	In situ sterilization with exogenous steam
Blade form	Flat blade / inclined blade / curved blade / rocket blade / paraboloid / semicircular blade / axial flow blade (various combinations are optional / specially designed according to user requirements
control mode	Industrial computer control / PLC control / DCS control (optional)
Scalable configuration	Two way feeding, multiple feeding, feeding weighing system, on-line monitoring of methanol and ethanol content, detection of exhaust O2 (%) and CO2 (%) (option)
