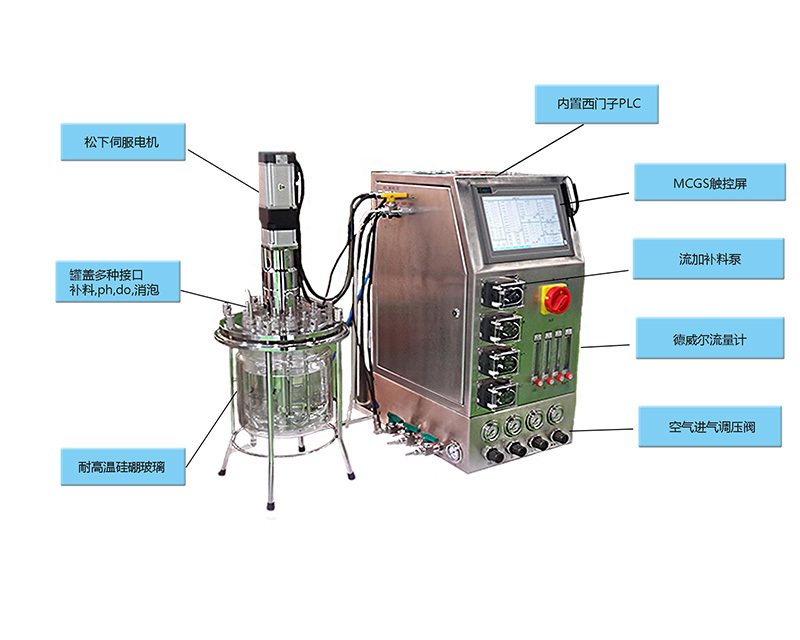

5L Glass mechanically stirred cell tank
volume:3L/5L/7L/10L
material:316L stainless steel + borosilicate glass
Mixing mode:Bottom magnetic drive mechanical stirring
Sterilization method:Sterilization in Sterilization pot
Basic configuration:Temperature, rotational speed, pH, dissolved oxygen, defoaming, feeding and tank pressure
Application area
This product is widely used in microbiology laboratories of universities, scientific research institutes and enterprises. It is an ideal tool for precision fermentation test. It can be applied to the screening of medium formula, optimization of fermentation process parameters and validation of production process and strain.
Technical parameter
Model |
MCGF-3 |
MCGF-5 |
MCGXF-3 |
MCGXF-5 |
NCGF-5 |
NCGF-7 |
volume |
3L |
5L |
3L double or multiple connection |
5L double or multiple connection |
5L |
7L |
Driving mode |
Top servo motor mechanical stirring |
|
||||
Sealing mode |
Mechanical seal |
|
||||
Tank material |
316L stainless steel + borosilicate glass |
|||||
speed control |
50~1000rpm,control accuracy ±5rpm |
|||||
temperature control |
T~50℃,control accuracy:±0.5℃(T is the external water temperature + 5 ℃) |
|||||
pH control |
2~12 pH,control accuracy:±0.02pH |
|||||
DO control |
5%~100%,Display accuracy:±1% |
|||||
Automatic defoaming |
Sensitivity:100~100000Ω |
|||||
Sterilization method |
Sterilization in Sterilization pot |
|||||
Blade form |
Flat blade / inclined blade / curved blade / rocket blade / paraboloid / semicircular blade / axial flow blade (various combinations are optional / specially designed according to user requirements |
|||||
control mode |
Industrial computer control / PLC control / DCS control (optional) |
|||||
Scalable configuration |
Two way feeding, multiple feeding, feeding weighing system, on-line monitoring of methanol and ethanol content, detection of exhaust O2 (%) and CO2 (%) (option) |
