Paddle agitator

　　This kind of agitator is the most basic type. PJ flow pattern is radial flow pattern, XJ and HJ have axial and radial split flow. When there is baffle, the power quasi value NP increases obviously, which is the upper and lower circulation flow, and the turbulence is strengthened. It is suitable for the mixing, dispersion, solid suspension, heat transfer and liquid phase reaction of low viscosity liquid. Our company can design for different industries and working conditions, and provide paddle agitators of various specifications and materials.

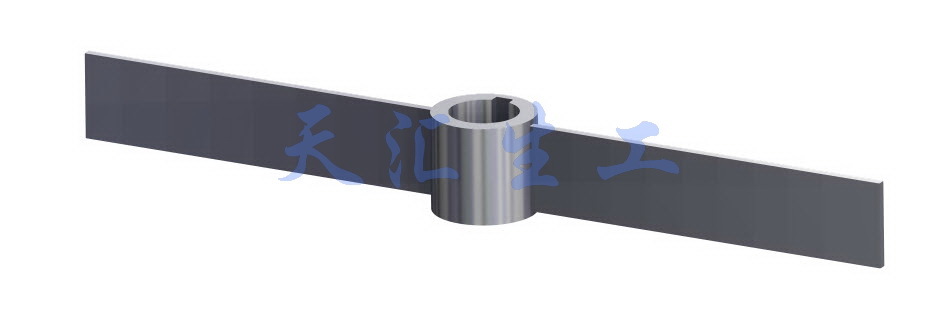

Straight blade propeller type (PJ)

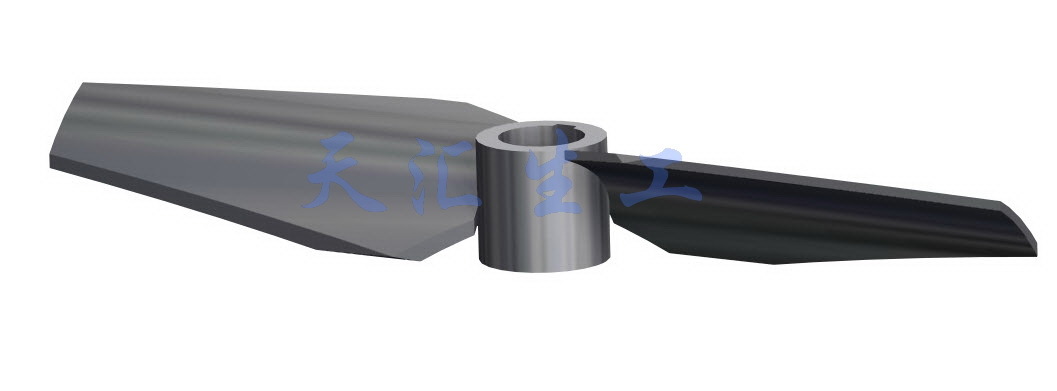

Inclined blade propeller (XJ)

Blade type (HJ)
